Description

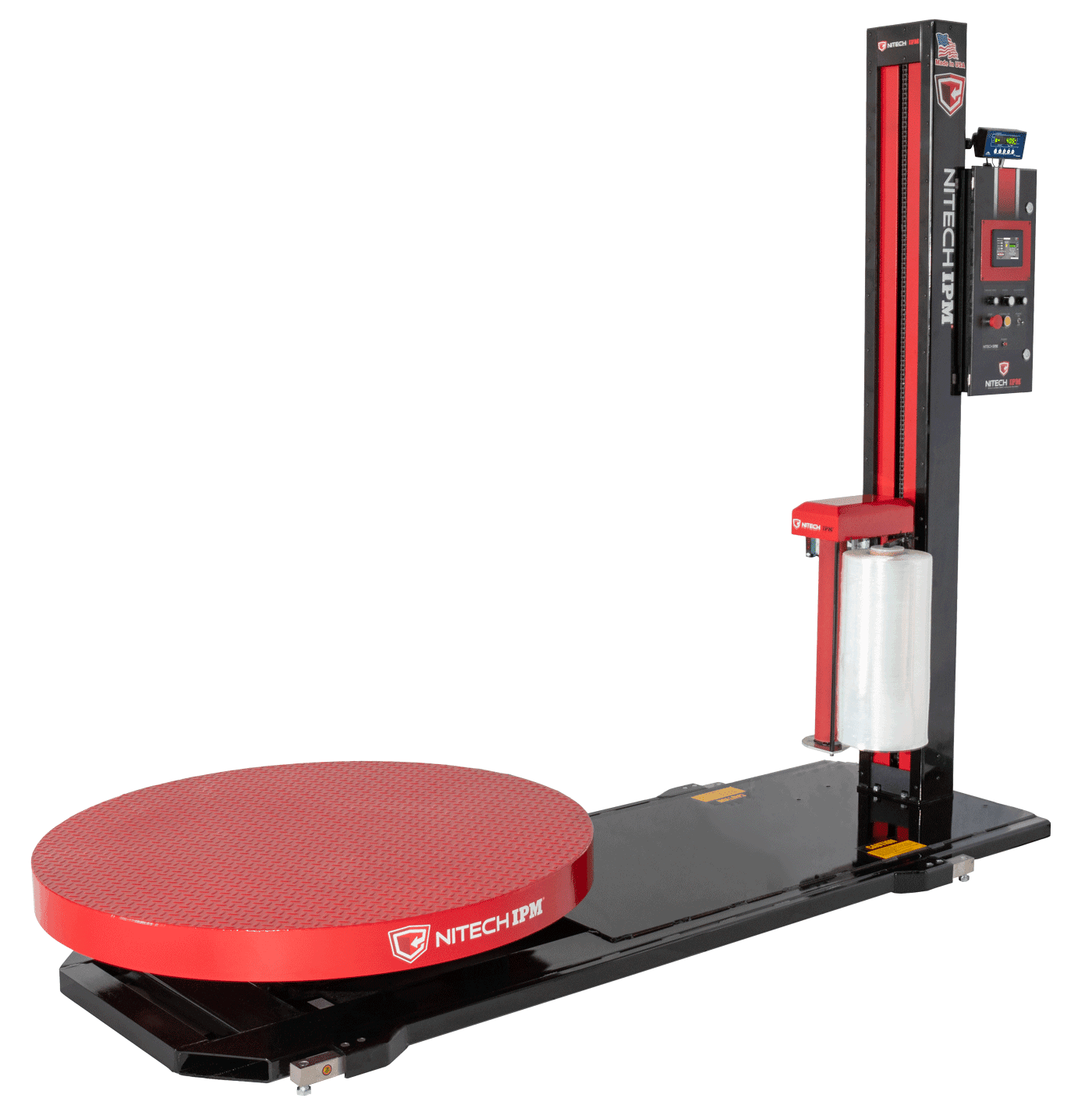

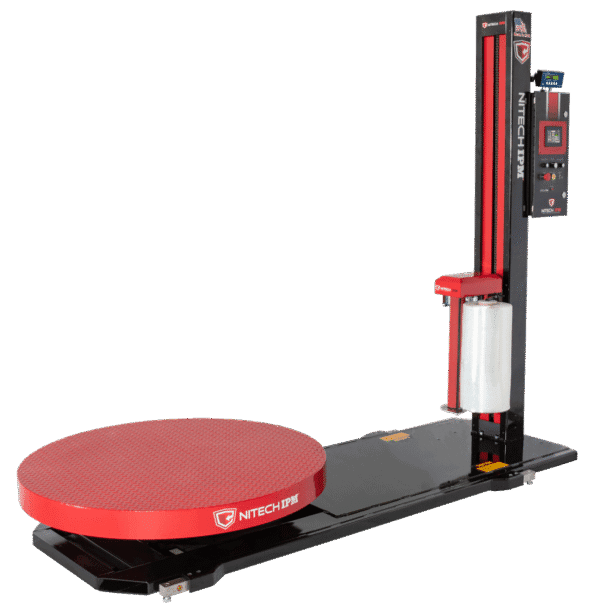

High Profile Semi-Automatic Stretch Wrapper with 20” Brake Motor Powered Stretch Film Delivery
High Profile Semi-Automatic Stretch Wrapper with 20” Brake Motor Powered Stretch Film Delivery
High Profile Semi-Automatic Stretch Wrapper with 20” Brake Motor Powered Stretch Film Delivery
| Machine Profile | High Profile |
|---|---|
| Maximum Load Size | 52" x 52" x 77" |
| Product Capacity | 40 Loads Per Hour |
| Machine Dimensions | 111"L x 48"W x 84"H |
| Weight Capacity | 4,000 lbs. |
| Electrical Data | 120 VAC 60 Hrtz 20 Amps, Conventional Style 3 Prong Power Cord, NEMA 12 Enclosure with Gasket sealed door, UL Approved Components |
| Turntable Size | 48" Round Turntable w/5" Safety Skirt |
| Turntable Height | 14 5/8” |
| Turntable Drive | 3/4 hp DC Motor (Totally Enclosed Fan Cooled), Heavy-Duty Direct Drive Gear Box w/ 2 ¼ output, Lubrication Free Enclosed gear drive design, Synthetic Lube in all Gearboxes (-30 to 120 Degrees), Turntable Indexing Home Alignment, Variable Speed 0-12 RPM with Soft Start and Soft Stop |
| Controls | 3 Indicator Lights Power, Ready and Tension, 4” Color Touch Screen with 5 Modifiable Programs, Dispenser Variable Speed Dial, Emergency Stop Button, Film Tension Dial (Force to Load), Liquid Crystal Display (LCD), Non-Resettable cycle counter, On/Pause Button, Photo Eye for Automatic Load Height Sensing, Start/Resume Switch, Turntable Jog, Turntable Variable Speed Dial |
| Film Delivery | 1/15 HP DC 90 Volt Motor, 8 Setting Adjustable Variable Film Stretch (Brake Roller), Accepts 12”-20” Rolls of Stretch Film on 3” Core, Brake Motor Powered Stretch, Stretch Level 30% to 150% Force to Load |
| Film Carriage | #50 Chain Carriage Lift, 1/3 HP 90 Volt DC Motor, Adjustable Lower limit Switch, Automatic and Manual Belly Wrapping, Dispenser Kill Switch Top/ Bottom, Top Over Wrap, Variable Speed Carriage 0-20 FPM |
| Tower Construction | 77” Wrap height using 20” Film, Dispenser Kill Switch Top/Bottom, Formed All Steel Tower, Maintenance Free UHMW Full Tower Slides, Optional wrap heights available up to 116” |
| Frame Construction | All Welded Steel Construction, Easy Access to all Components, Forklift Portable from Front and Rear, Heavy-Duty Structural Tube and Plate, Industrial Powder Coated Paint Finish |
| Power Required: | 115 volts, 50/60 hrtz, 20 Amp Service |
| Technical Documentation | Complete Electrical Schematics, Complete Operators Manual, Illustrated Parts Break down |
| Warranty | 4 Year Limited Warranty (100% of All Components), 10-Year Gear Reducer Warranty, 5-Year Structural Warranty |
| Shipping Weight | 1,204 lbs |
