77203-LPAW-60

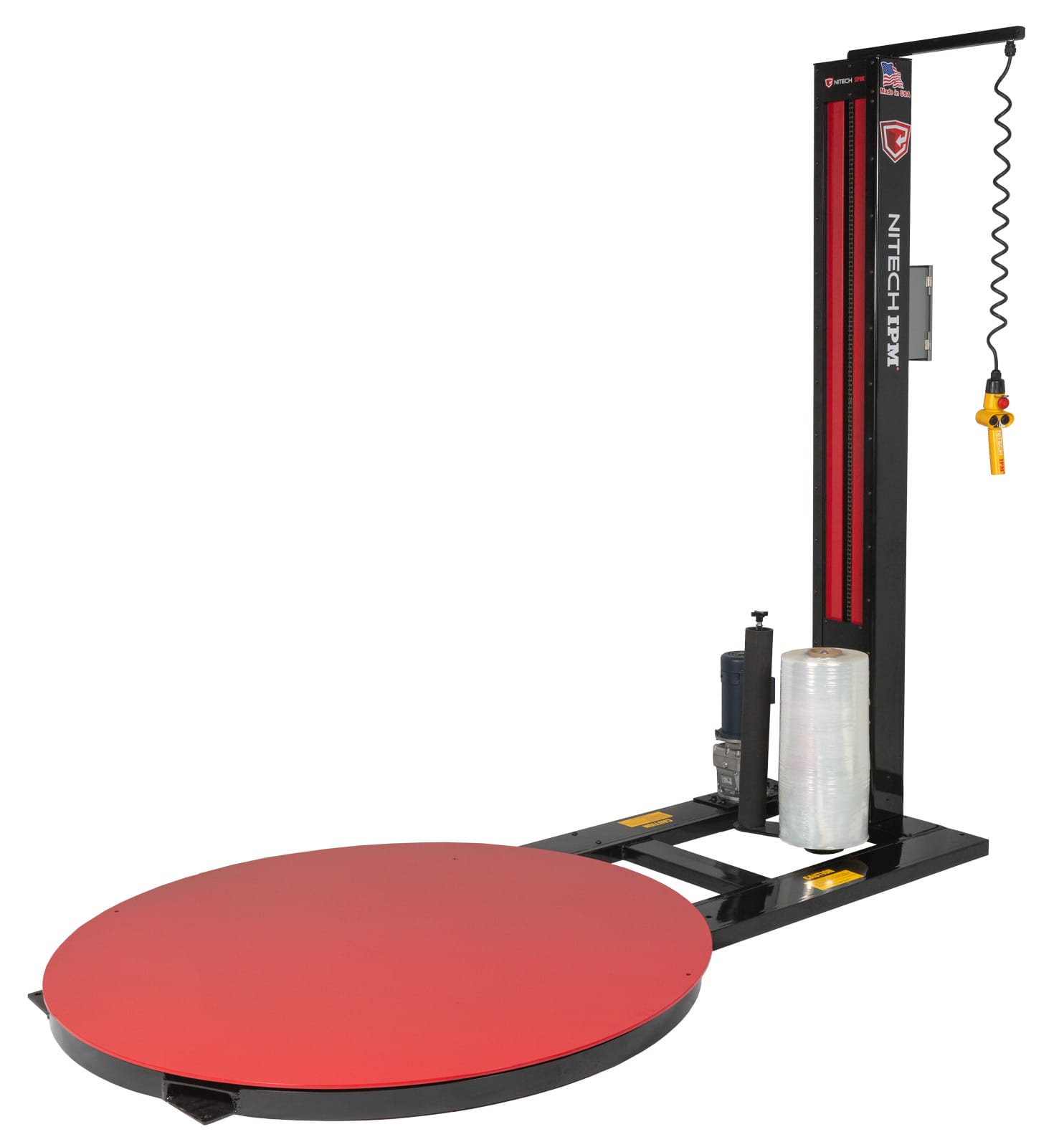

Low Profile Fixed speed Turntable with Pendant Control & Quick-Load film Dispenser

View List

Share

Description

When it comes to an economical wrapping application the 77203-LPAW is hard to match. These stretch wrap machines come equipped with a variable speed film carriage to move the Quick-Load film dispenser up and down. Just preset the film carriage’s vertical speed on the control board and adjust the manual brake for film tension. Then, load the 48″ turntable and attach the film. While the load turns you control the up and down movement of the dispenser and the turntable rotation with the pendant control. Increase productivity, economize film usage, and have tighter load security.

Specifications

Machine Profile

Low Profile

Maximum Load Size

52" x 52" x 80"

Product Capacity

30 Loads Per Hour

Machine Dimensions

85”L x 48”W x 83”H

Weight Capacity

4,000 lbs.

Electrical Data

120 VAC 60 Hrtz 20 Amps, Conventional Style 3 Prong Power Cord, UL Approved Components

Turntable Size

48" Round Turntable

Turntable Height

2 7/8”

Turntable Drive

3/4 hp DC Motor (Totally Enclosed Fan Cooled), 4 Point Cam follower Supports (5,000 lb. capacity each), Heavy-Duty #50 Roller Chain and Drive Sprockets, High Efficient Lubrication Free helical gear box, Synthetic Lube in all Gearboxes (-30 to 120 Degrees), Variable Speed 0-15 RPM with Soft Start and Soft Stop

Controls

Dispenser Variable Speed Dial, Turntable On / Off Switch, Up/Down Rocker Switch

Film Delivery

Accepts 12”-20” Rolls of Stretch Film on 3” Core, Manually Adjusted Variable Film Stretch (Load Brake), Quick-Load Film Dispenser, Stretch Level 30% to 150% Force to Load

Film Carriage

#50 Chain Carriage Lift, 1/3 HP 90 Volt DC Motor, Dispenser Kill Switch Top/ Bottom, Variable Speed Carriage 0-20 FPM

Tower Construction

80” Wrap height, Dispenser Kill Switch Top/Bottom, Formed All Steel Tower, Maintenance Free UHMW Full Tower Slides, Optional wrap heights available up to 116”

Frame Construction

All Welded Steel Construction, Easy Access to all Components, Forklift Portable from Front and Rear, Heavy-Duty Structural Tube and Plate, Industrial Powder Coated Paint Finish

Power Required:

115 volts, 50/60 hrtz, 20 Amp Service

Technical Documentation

Complete Electrical Schematics, Complete Operators Manual, Illustrated Parts Break down

Warranty

4 Year Limited Warranty (100% of All Components), 10-Year Structural Warranty

Average Cycle Time

1 minute 20 seconds wrapping 40" x 48" x 60" pallet with 12 wraps. Load configuration will vary wrap cycle.

Shipping Weight

1,075 lbs
