Description

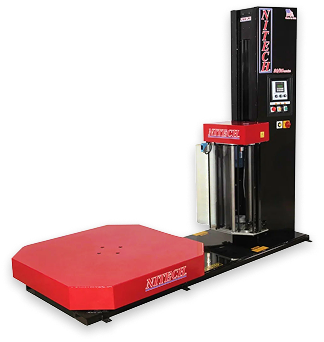

High Profile 6,000 lb Capacity Semi-Automatic Stretch Wrapper with 30” UTS Powered Pre-Stretch Film Delivery
High Profile 6,000 lb Capacity Semi-Automatic Stretch Wrapper with 30” UTS Powered Pre-Stretch Film Delivery
High Profile 6,000 lb Capacity Semi-Automatic Stretch Wrapper with 30” UTS Powered Pre-Stretch Film Delivery
| Weight | 540 lbs |
|---|---|
| Machine Profile | High Profile |
| Maximum Load Size | 56" x 56" x 87" |
| Product Capacity | 50 Loads per Hour |
| Machine Dimensions | 111"L x 48"W x 87"H |
| Weight Capacity | 6,000 lbs. |
| Electrical Data | 120 VAC 60 Hrtz 20 Amps, Conventional Style 3 Prong Power Cord, NEMA 12 Enclosure, UL Approved Components |
| Turntable Size | 48" Octagon Turntable w/6" Safety Skirt |
| Turntable Height | 11 3/4" |
| Turntable Drive | 3/4 hp DC Motor (Totally Enclosed Fan Cooled), 4 Point Caster Supports (1,800 lb. capacity each), Heavy-Duty Direct Drive Gear Box w/ 2 ¼ output, Lubrication Free Enclosed gear drive design, Synthetic Lube in all Gearboxes (-30 to 120 Degrees), Turntable Indexing Home Alignment, Variable Speed 0-12 RPM with Soft Start and Soft Stop |
| Controls | 3 Indicator Lights Power, Ready and Tension, 7” Color Touch Screen with 8 Modifiable Programs, Dispenser Variable Speed Dial, Emergency Stop Button, Film Tension Dial (Force to Load), Full Color Operators Manual on Touch Screen, Liquid Crystal Display (LCD), Manual Back-Up Operating System, Non-Resettable cycle counter, On/Pause Button, Photo Eye for Automatic Load Height Sensing, Real Time Machine Alerts From Touch Screen, Start/Resume Switch, Turntable Jog, Turntable Variable Speed Dial |
| Film Delivery | (Gear switch to 250%, 275% or 300%), ½ HP DC 90 Volt Motor, 30” UTS Pre-Stretch Film Delivery, Accepts 20” and 30” Rolls of Stretch Film on 3” Core, No-Thread Film Carriage, Pre-Stretch level 200% fixed |
| Film Carriage | ½ HP 90 Volt DC Motor, Adjustable Lower limit Switch, Automatic and Manual Belly Wrapping, Dispenser Kill Switch Top/ Bottom, Dual #50 Chain Carriage Lift, Top Over Wrap, Variable Speed Carriage 0-20 FPM |
| Tower Construction | 87” Wrap height using 30” Film, Dispenser Kill Switch Top/Bottom, Formed All Steel Tower, Gasket Sealed Tower, Maintenance Free UHMW Full Tower Slides, Optional Hi-Slide with 130” Wrap Height, Rear Access Tower Door |
| Frame Construction | All Welded Steel Construction, Easy Access to all Components, Forklift Portable from Front and Rear, Heavy-Duty Structural Tube and Plate, Industrial Powder Coated Paint Finish (Tower) |
| Power Required: | 115 volts, 50/60 hrtz, 20 Amp Service |
| Technical Documentation | Complete Electrical Schematics, Complete Operators Manual, Illustrated Parts Break down |
| Warranty | 4 Year Limited Warranty (100% of All Components), 10-Year Gear Reducer Warranty, 5-Year Structural Warranty |
| Average Cycle Time | 1 minute 20 seconds wrapping 40" x 48" x 60" pallet with 12 wraps. Load configuration will vary wrap cycle. |
| Shipping Weight | 2,110 lbs |
