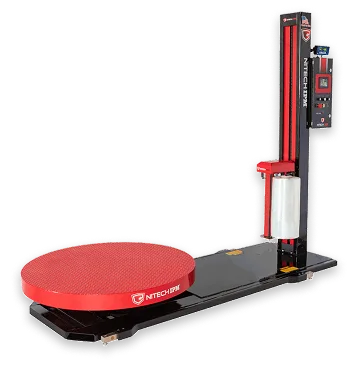

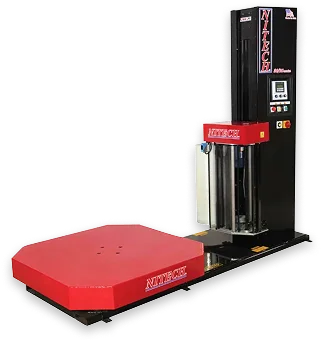

The NITECH 772020D-PS is designed for operations that need consistent, semi-automatic wrapping with reduced film usage and increased load coverage. Built on the 2020 platform and equipped with a powered pre-stretch system, it extends film before application to improve efficiency while maintaining reliable load containment.
Load the turntable, attach the film to the pallet, select a program, and press start. The machine automatically wraps the load as the carriage travels upward, senses the top with the photo eye, applies preset wraps, then reverses and completes the cycle before stopping in position for easy unloading.
The powered pre-stretch system increases film yield per rotation, allowing less film to unitize the load. This helps reduce material usage while improving cycle efficiency across each load.
Power pre-stretch extends the film before application, allowing more loads to be wrapped with less material.
Wider film capability and increased coverage per rotation reduce the number of revolutions needed to wrap each pallet.
Automatic wrap cycles deliver repeatable results without requiring manual control during the process.
| Machine Profile | High Profile. |
|---|---|
| Maximum Load Size | 52″ x 52″ x 77″. |
| Product Capacity | 40 Loads Per Hour. |
| Machine Dimensions | 111″L x 48″W x 86″H. |
| Weight Capacity | 6,000 lbs. |
| Electrical Data | 120 VAC 60 Hrtz 20 Amps, Conventional Style 3 Prong 20, Power Cord, NEMA 12 Enclosure with Gasketed door, UL Approved Components. |
| Turntable Size | 48″ Octagon Turntable w/6″ Safety Skirt. |
| Turntable Height | 11 3/4″. |
| Turntable Drive | 3/4 hp DC Motor (Totally Enclosed Fan Cooled), 4 Point Caster Supports (1,800 lb. capacity each), Heavy-Duty Direct Drive Gear Box w/ 2 1/4 output, Lubrication Free Enclosed gear drive design, Synthetic Lube in all Gearboxes (-30 to 120 Degrees), Turntable Indexing Home Alignment, Variable Speed 0-12 RPM with Soft Start and Soft Stop. |
| Controls | 7″ Color Touch Screen with 8 Modifiable Programs, Manual Back-Up Operating System. Real Time Machine Alerts From Touch Screen, Full Color Operators Manual on Touch Screen, Turntable Variable Speed Dial, Carriage Variable Speed Dial, Film Tension Dial (Force to Load), Turntable Jog, Emergency Stop Button, On/Pause Button, Start/Resume Switch, 3 Indicator Lights Power, Ready and Tension, Liquid Crystal Display (LCD), Non-Resettable cycle counter, Photo Eye for Automatic Load Height Sensing. |
| Film Delivery | 20″ PPS Powered Pre-Stretch Film Delivery, Easy Thread Film Carriage, Pre-Stretch level 200% fixed. (Gear switch to 250%, 275% or 300%), Accepts 20″ Rolls of Stretch Film on 3″ Core. 1/4 HP DC 90 Volt Motor. |
| Film Carriage | #40 Chain Carriage Lift, 1/4 HP 90 Volt DC Motor, Adjustable Lower limit Switch, Automatic and Manual Belly Wrapping, Carriage Kill Switch Top/ Bottom, Top Over Wrap, Variable Speed Carriage 0-20 FPM. |
| Tower Construction | 77″ Wrap height using 20″ Film, Adjustable Lower Limit Switch, Carriage Kill Switch Top and Bottom, Formed All Steel Tower, Maintenance Free UHMW Full Tower Slides, Optional wrap heights available up to 116″. |
| Frame Construction | All Welded Steel Construction, Easy Access to all Components, Forklift Portable from Front and Rear, Heavy-Duty Structural Tube and Plate, Industrial Powder Coated Paint Finish. |
| Power Required: | 115 volts, 50/60 hrtz, 20 Amp Service. |
| Technical Documentation | Complete Electrical Schematics, Complete Operators Manual, Illustrated Parts Break down. |
| Warranty | 4 Year Limited Warranty (100% of All Components), 10-Year Gear Reducer Warranty, 10-Year Structural Warranty. |
| Average Cycle Time | 1 minute 20 seconds wrapping 40″ x 48″ x 60″ pallet with 12 wraps. Load configuration will vary wrap cycle. |
| Shipping Weight | 1,520 lbs. |
We’re here to help with any inquiries about our products and services.
High-profile stretch wrappers are designed for use with forklifts and feature a higher turntable, making them ideal for environments that handle frequent, heavy shaped loads.
Low-profile stretch wrappers have a lower turntable, making them accessible for pallet jack loading, often paired with a ramp for easier loading and unloading.
